LS Series Linear Scale

Our LS linear scale is a net weigh scale designed for weighments between 0.1 lb and 5 lbs of free and semi-free flowing product.

LS Series Linear Scale Features:

  • 2 lb and 5 lb weigh bucket
  • PLC based control system with user friendly touchscreen
  • Stainless steel construction for IQF and other wash-down environments
  • One to four lane configurations
  • Infeed hopper with level control
  • Two-stage vibrator pan sensor with bulk and fine feed control
  • Bulk cut-off gates
  • Sealed triple beam strain gauge load cells
  • Pneumatically actuated weigh buckets
  • Transfer funnel for single point discharge
  • Imperial and metric units of weight measure and piece count
  • 25 product set-up memory
  • Security access
  • Automatic tare and check weigh with precision flow restart (no underweighments)
  • Multiple discharge capability
  • NEMA 4X electrical enclosure
  • Engineered and manufactured in the U.S.A.

Machine Speed:

  • 10-12 weighments per minute per lane

Accuracy:

  • Triple beam load cell resolution to 0.01 ounce (0.28 g) up to 2 lb (0.91 kg) weighments
  • Triple beam load cell resolution to 0.08 ounces (2.27 g) up to 5 lb (2.27 kg) weighments

Weigh Bucket Specifications:

  • 2 lb. - 175 cubic inch (2.9 l) weigh bucket working volume
  • 5 lb. - 400 cubic inch (6.55 l) weigh bucket working volume
  • Heavy gauge stainless steel with smooth welded seams

Machine Options:

  • Adjustable infeed chute with vibratory infeed & level sensors
  • Support legs with leveling pads or locking casters
  • Textured product contact surfaces
  • Sift proof weigh buckets
  • Custom discharge hopper
  • Fine feed closure gate
  • Remote operator interface
  • Foot operated discharge switch
  • Hand catch discharge funnel
  • UL listed electrical enclosure
  • Fragile product handling options

Common Applications:

  • Bakery
    • - biscuits
    • - cereal
    • - cookies
    • - crackers
    • - donuts
    • - muffins
  • Chemicals
    • - detergents
    • - lubricants
    • - gel packs
  • Coffee
    • - beans
    • - ground coffee
  • Confections and candy
    • - candy fruit slices
    • - candy rings
    • - caramels
    • - chocolate candies
    • - gummy bears
    • - mints
  • Dried Fruit
  • Fresh Produce
    • - fruit
    • - vegetables
  • Grain
    • - barley
    • - ground meal
    • - oats
    • - wheat
  • Meat & Poultry
    • - beef
    • - chicken
    • - sausage
  • Individually Quick Frozen
    • - fruit
    • - pasta
    • - potatoes
    • - seafood
    • - vegetables
  • Pasta
  • Pet Food
  • Pet Litter
  • Pet Treats
  • Rice
  • Salty Snacks
    • - dried fruit/vegetables
    • - nuts
    • - snack mix
  • Seeds
    • - corn
    • - nuts
    • - treated seeds

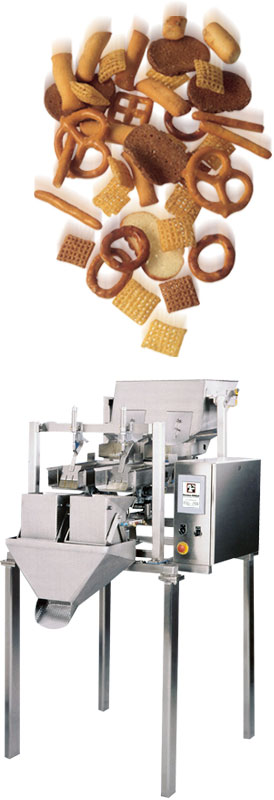

Ls Linear Scale Aside
