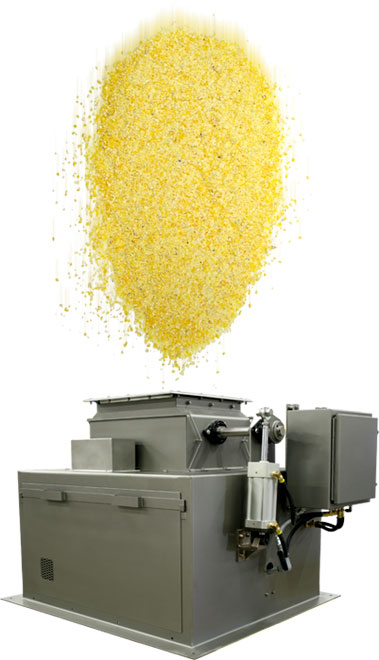

ET-200 Inventory/Loadout Scale

The Parsons-Eagle ET-200 inventory/loadout scale is a net weigh inventory or loadout scale designed for individual weighments up to 200 lbs. of free flowing product with throughputs up to 60,000 lbs. per hour.

ET-200 Inventory/Loadout Scale Features:

  • PLC based control system with user friendly touchscreen
  • Totally enclosed scale frame with dust extraction ports
  • Stainless steel product contact parts
  • Strain gauge load cell with overload protection
  • Pneumatically actuated weigh buckets and feed chutes
  • Storage for multiple setups in memory
  • Low air pressure sensor
  • Convenient exchange of throughput or batch data
  • Remote operator interface
  • Engineered and manufactured in the U.S.A.

Machine Speed:

  • 4-6 weighments per minute per lane

Accuracy:

  • +/- 1/10th of 1% of target batch weight or throughput

Weigh Bucket Specifications:

  • 200 lb maximum capacity – 5.50 cubic feet
  • Heavy gauge stainless steel with smooth welded seams
  • Pneumatic actuation

Machine Options:

  • Custom infeed hopper
  • Custom discharge hopper
  • Hazardous Duty Rating (Class II, Division I or II, Group G)
  • UL listed control panel
  • High-level and low-level hopper limit switches
  • Manual or automatic calibration weights
  • Customized software

Common products weighed include:

  • Salt
  • Sugar
  • Treated Seeds
  • Plastic Pellets
  • Rice and other grains
