14-Head Large Capacity Scale

The Parsons-Eagle 14-head large capacity scale is a single discharge multi-head combination net weigher ideal for weighments of large volume products including IQF meat and poultry pieces, irregular pet food or treats and fresh, frozen or dried pasta up to 85 discharges per minute.

14-Head Large Capacity Combination Scale Features:

  • PC based control system with user friendly touchscreen
  • Stainless steel construction for IQF and other wash-down environments
  • Can be supplied with stepper or pneumatic bucket actuation, net weighing or piece count capabilities
  • Hot swappable weigh heads require no pre-programming when moved from one weigh head location to another
  • Triple-beam strain gauge load cells in the weigh heads combined with a highly refined vibration filter system (DSP) provide precise weighments in weigh buckets
  • Automatic tare ensures accuracy with sticky and dusty products
  • Storage for over 100 setups in memory
  • USDA and IQF wash-down designs are available
  • Engineered and manufactured in the U.S.A.

Machine Speed:

  • Up to 85 weighments per minute

Accuracy:

  • <5 g average giveaway per 3000 g weighment

Bucket Specifications:

  • 287 cubic inch (4.70 l) weigh bucket working volume
  • Heavy gauge stainless steel with smooth welded seams
  • Pneumatic or stepper motor actuation

Maximum Throughput:

  • Up to 670 lbs (303.91 kg) per minute on a 26 lbs/cu. ft. free flow product density

Machine Options:

  • NEMA 4X Enclosure
  • Distribution cone motion options
  • Customized parts and finishes for unique product handling
  • High capacity flood feed infeed module
  • Integrated product diverters
  • Unique bucket designs for products up to 10 inches (254 mm) in length

Common products weighed include:

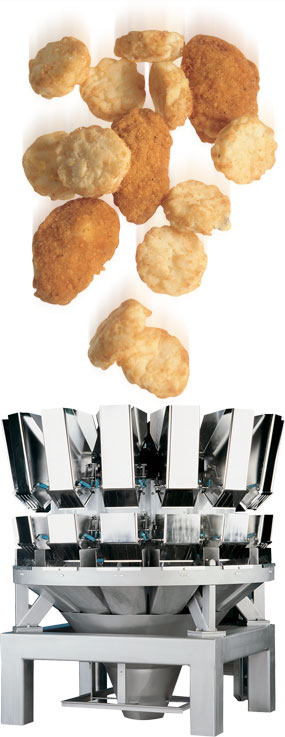

14-head-large-capacity-combo-scale-aside



For more information, please submit a request and a .pdf brochure will be sent to the email address provided.

Request Brochure
